Fifty years of service leaves a mark on any electrical system. When you’re considering an Early Bronco purchase or restoration, the wiring harness isn’t immediately visible—but it determines whether your build delivers the driving experience you expect.
The original 1966-1977 Ford Bronco wiring was designed for a different era. A simple powertrain, basic lighting, minimal accessories. The system worked when new, but decades of exposure and the natural evolution to modern features create an opportunity to elevate the entire electrical foundation.
This guide covers wiring options, the factors that affect cost, and the decisions owners can discuss with a builder when planning a restoration.

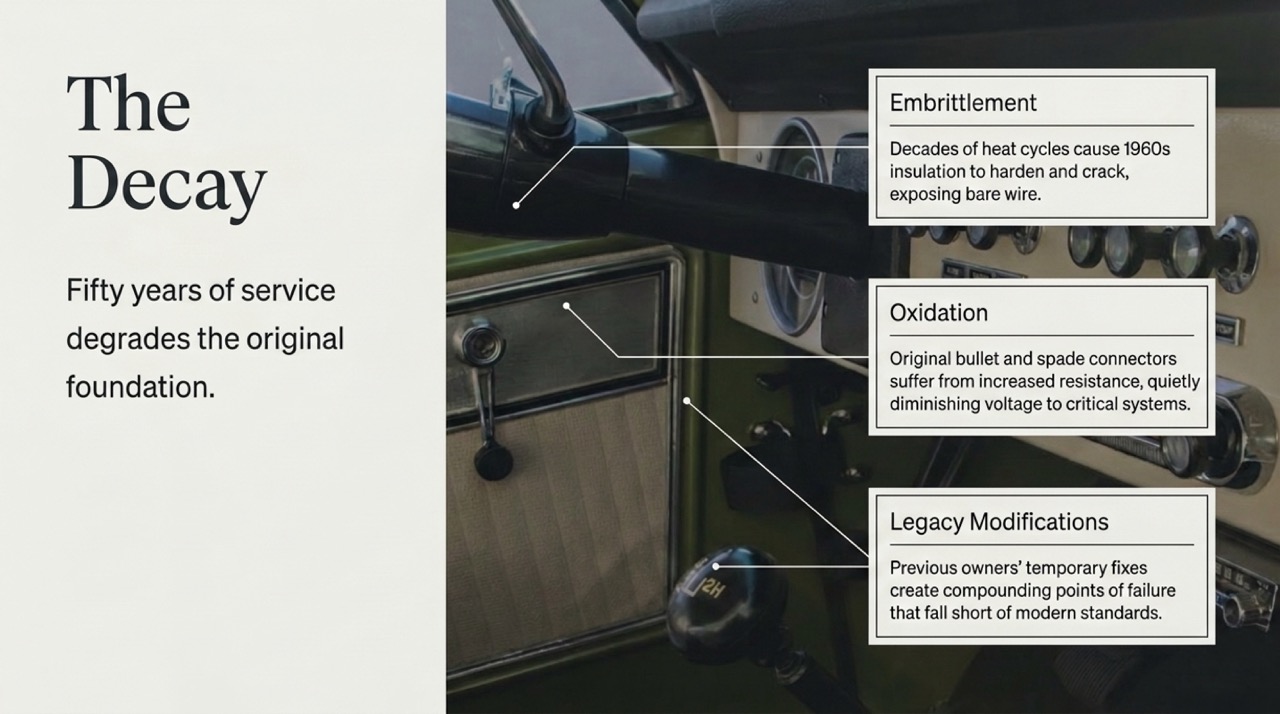

Why 50-Year-Old Wiring Deserves Attention
Original insulation materials from the 1960s and 70s weren’t engineered for half a century of service. Heat cycles in engine bays and under dashboards cause insulation to become brittle. One connection fails and you’re working through a bundle of aging wires.
Oxidation at connection points quietly diminishes performance. The original spade connectors, bullet connectors, and ground points weren’t designed to last decades. Resistance increases at these points, which means reduced voltage where it matters most—fuel pumps, ignition systems, headlights. Performance issues that seem drivable often trace back to electrical connections.
Previous owners made modifications based on what was available at the time. Wiring for aftermarket accessories often involved connections that don’t meet today’s standards. These modifications don’t necessarily present immediate problems, but they create an opportunity for improvement when you’re ready to elevate the system.

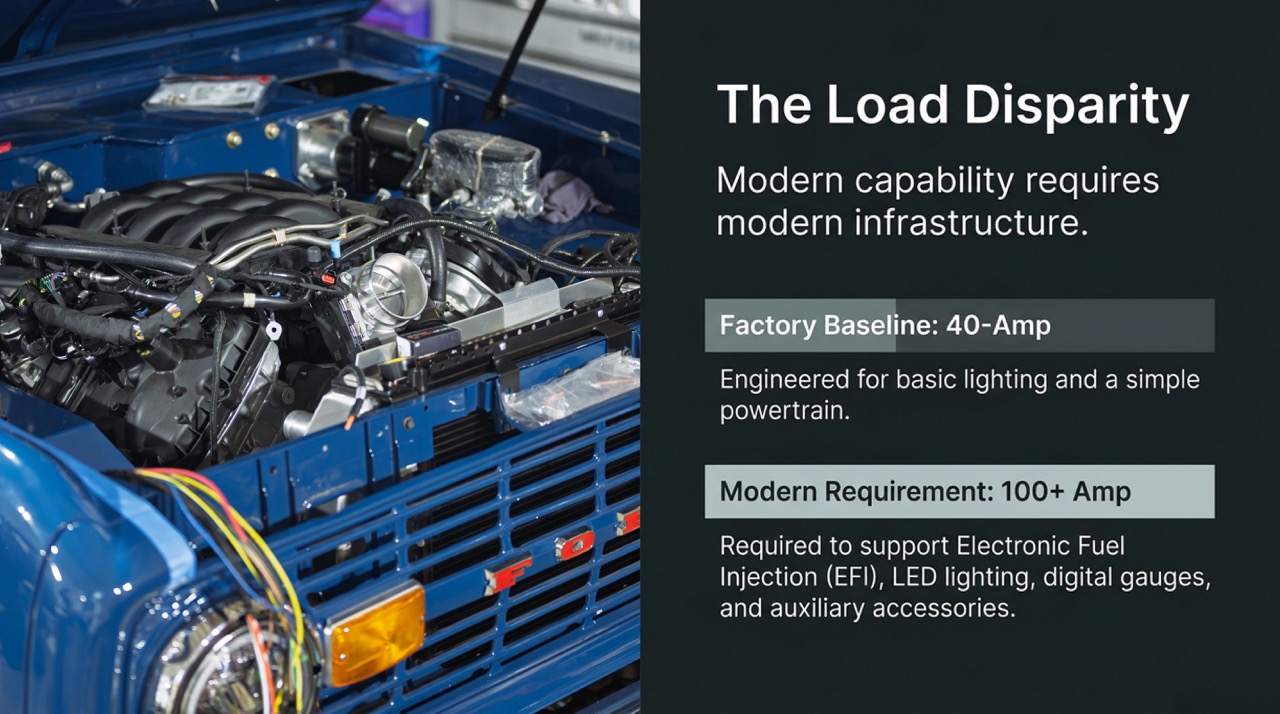

Modern accessories exceed the original design parameters. LED headlights, electronic fuel injection, modern gauges, phone charging, winches, onboard air—these additions represent capability that the original charging system and wiring harness weren’t engineered to support. You can work within the existing framework, or you can build an electrical system that matches your vision for the truck.
Understanding Your Options: Repair vs Replace vs Full Rewire
Your approach depends on the vehicle’s condition and your plans. Not every Early Bronco needs a complete rewire. ASC focuses on substantial partial restorations and complete builds; whether a smaller job is a fit depends on its scope.
Spot repairs address isolated situations. If you have a single circuit issue or a specific ground point needing attention, targeted repair delivers results efficiently. You address the specific area and move forward. The consideration is that once you’re working through a vintage system, you’re rarely dealing with just one area. Fifty-year-old wiring tends to benefit from comprehensive attention.
Harness section replacement works when one area requires focus. The engine bay harness often experiences the most demanding conditions, and vendors offer replacement sections specifically for this area. Under-dash harnesses can also be replaced independently. This approach costs less than a full rewire while addressing the most critical sections. The trade-off is mating old wire to new, which creates new connection points.
Complete rewire with modern kits represents the comprehensive solution. You remove the original wiring and install a full system with contemporary components, proper fusing, and circuits designed for modern use. This is the right choice if you’re doing a frame-off restoration, planning significant powertrain upgrades, or want reliability that matches the rest of your build. It’s also the most substantial investment in parts and labor.
OEM-style reproduction harnesses replicate the original Ford routing and appearance. These appeal to restorers prioritizing factory correctness, though they don’t address the capabilities of modern components. Aftermarket universal kits offer more modern features but require significant adaptation to fit an Early Bronco’s specific layout. Application-specific kits designed for Early Broncos balance original appearance with modern reliability. If wiring is one part of a complete build, talk through the electrical plan with ASC alongside the rest of your project.
What Affects Wiring Costs?
The condition of the existing system, the harness chosen, the number of circuits, the powertrain, and the accessories all affect the work required. A written scope should explain what will be reused, repaired, or replaced, along with how testing, documentation, and any discoveries will be handled.
For a substantial partial restoration or a complete build, discuss the electrical plan alongside the rest of the project. ASC’s published complete-build investment is $100,000–$250,000+, depending on the starting vehicle and agreed scope; partial projects are scoped individually. A donor is required for complete builds, and ASC can discuss sourcing one if needed.
Choosing a Wiring Harness
Harnesses range from factory-style replacements to application-specific and universal systems. Compare compatibility with the vehicle’s year and switchgear, documentation, circuit protection, connector quality, and capacity for planned equipment. Product specifications and availability can change, so check current manufacturer documentation before deciding.
DIY vs Professional Wiring: Factors to Consider
A complete rewire requires the ability to read vehicle-specific schematics, select appropriate circuit protection and connectors, document changes, and test the finished system. Complexity and time vary with the vehicle and its modifications.
For a restoration client, professional planning can coordinate the harness with the drivetrain, interior, accessories, and the rest of the build. Discuss the scope, documentation, testing, and serviceability with your builder before work begins.
Professional Installation: What to Expect
Engaging professionals makes sense if you value your time, prefer established electrical expertise, or are already investing in a comprehensive restoration. Understanding what to expect helps you choose the right shop and manage the process effectively.
Finding Qualified Shops
Not every restoration shop handles electrical work with equal capability. Look for shops with demonstrated Early Bronco experience—ask to see examples of their wiring work. Quality wiring should appear almost factory once installed: clean routing, proper protection, neatly bundled and secured runs, accessible fuse panels, and clear labeling. Disorganized routing often reflects disorganized approach.
Specialty electrical shops focus on vehicle wiring and handle complex builds including EFI integration, modern gauge clusters, and custom accessory circuits. These shops often represent higher investment but deliver more sophisticated solutions.
Ask potential shops about their process: Do they remove the entire old harness or work around it? How do they document the new system for you? What’s their warranty on electrical work? How do they address troubleshooting if issues arise after you take possession? Answers to these questions indicate their professionalism.
What a Good Shop Provides
Professional installation should include more than running wires. A quality shop assesses your complete electrical needs—including current and future accessories—before recommending a specific kit or approach. They properly size circuits, include appropriate relays for high-draw components, plan adequate grounding points, and route everything to minimize interference and potential damage.
Documentation matters. A good shop provides a wiring diagram of what they installed, labeling of circuits at the fuse panel, and notes on any deviations from standard kit instructions. This documentation becomes valuable if you need to troubleshoot or modify the system later.
Warranty coverage and terms vary. Ask the shop what is covered, including parts, labor, exclusions, and how post-delivery issues are handled.
Communication During the Process
Good shops communicate progress regularly. You should receive updates when significant milestones are reached: old harness removed, new harness routed, initial testing completed, final verification done. Ask questions during the process—a shop that welcomes your curiosity is usually one that takes pride in their work.
Quality checkpoints matter. Ask if you can inspect the work at key stages. Seeing how they route and secure wires, how they handle connections, and how they organize the fuse panel area gives you confidence in the final result. Shops proud of their work welcome your interest.

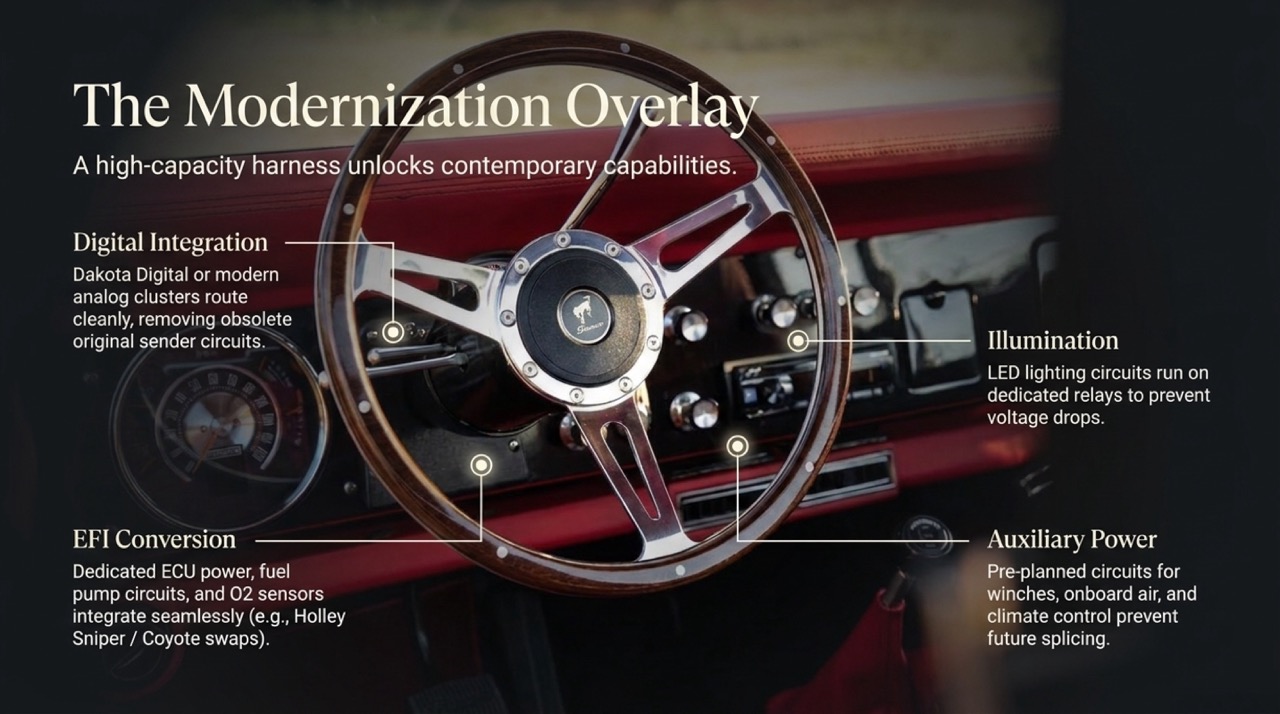

Modern Upgrades to Consider During Rewire
If your restoration includes wiring work, discuss current and anticipated upgrades before the harness and electrical layout are finalized. Coordinating them early can avoid unnecessary rework.
EFI Conversion Wiring
Electronic fuel injection can add wiring requirements to an Early Bronco build. Modern EFI systems require fuel pump circuits, ECU power and ground, oxygen sensor circuits, and often additional ignition system wiring. Planning these circuits during your rewire enables clean integration rather than adding an aftermarket harness alongside your new wiring. For a complete restoration or restomod, discuss your planned powertrain and accessories as part of the build brief.
Different EFI and engine packages have different harness, power, and control requirements. Review the selected manufacturer’s documentation and coordinate integration with the vehicle’s electrical plan.
LED Lighting Circuits
Lighting requirements vary by product and circuit. Discuss the electrical load, circuit protection, controls, and any required flasher or dimming components with the builder.
Modern Gauge Clusters
Factory Early Bronco gauges offer period charm. Modern digital or analog clusters can add displays, warning features, or engine-management integration depending on the product. Installing these during a rewire allows you to route sender wiring cleanly and potentially remove unnecessary original gauge circuits. Dakota Digital offers plug-and-play systems designed for vintage vehicles.
Auxiliary Circuits
Some owners plan for accessories such as winches, onboard air, auxiliary lighting, sound systems, phone charging, heated seats, or modern HVAC. Planning dedicated circuits for anticipated accessories means you’re not tapping into existing circuits later. Quality rewire kits include spare circuits for future expansion.
Charging System Upgrades
Charging needs depend on the alternator, wiring, operating conditions, and electrical loads in the specific vehicle. Ask the builder to plan charging capacity, wiring, and circuit protection for the actual equipment rather than assuming a universal alternator rating.
Common Mistakes Buyers Make
Considering these issues early can reduce rework and help owners discuss long-term serviceability with a builder.
Choosing the Cheapest Kit Without Reviewing Compatibility
A kit that lacks clear documentation, suitable connectors, or enough circuit capacity can create extra work. Compare compatibility and support as well as the initial price.
Underestimating Complexity of Modern Accessories
Many buyers plan a basic rewire, then decide mid-project to add EFI, modern gauges, and accessory circuits. The kit they selected doesn’t have sufficient circuits or proper fuse capacity. Adding an aftermarket accessory harness alongside your new main harness creates the kind of installation complexity you were trying to avoid. Plan for everything you might want before selecting your kit.
Not Documenting the Existing System Before Removal
When you remove fifty years of wiring, you’re removing a map of how everything works. If you don’t label which wire went to which switch, where grounds were located, and how the original routing worked, you’re working without reference during reinstallation. Taking photos and labeling connections before removal seems like additional work but saves time later.
Skipping Proper Grounding Systems
Voltage drops across inadequate grounds cause more electrical situations than almost anything else. Many DIY rewire projects focus on power wiring but treat grounds as secondary—scraping paint here, bolting there, assuming it works. A proper rewire includes planned grounding points with clean metal contact, adequate wire gauge, and protection from corrosion. Grounding deserves the same attention as power circuits.
Ignoring Fuse Panel Accessibility
Mounting the fuse panel somewhere convenient for installation but difficult to access later is a common oversight. When you need to change a fuse or troubleshoot a circuit, you want straightforward access without removing your dash or climbing under the vehicle. Accessible fuse panel location with reasonable protection from the elements matters for long-term usability.
ASC Early Bronco Wiring Standards: What Quality Means
Electrical systems either deliver reliability or they don’t. There’s no middle ground where “adequate” makes sense on a vehicle you depend on. At ASC 4×4, wiring standards reflect this reality—every circuit, connection, and routing decision serves reliability and serviceability.
OEM-Style Routing and Protection
Factory engineers designed wire routing that avoids heat, moving parts, and potential damage points. Quality reproduction work respects this logic. Wires run through protective loom where appropriate, are secured at regular intervals to prevent chafing, and avoid sharp edges through body openings. Routing isn’t just about making it fit—it’s about creating a system that performs consistently.
Proper Gauge Selection for Each Circuit
Every circuit serves a specific purpose with known current requirements. Using oversized wire adds unnecessary cost and bulk; using undersized wire creates voltage drops and heat. Quality wiring matches wire gauge to circuit requirements, accounting for length and anticipated load. This isn’t estimation—it’s calculated based on actual needs.
Clean, Labeled, and Serviceable Connections
Every connection point should be accessible, identifiable, and maintainable. Splices are minimized and use appropriate automotive connections and protection. Connectors use appropriate terminals for the application. Fuse panel circuits are clearly labeled so you don’t need a schematic to locate which fuse protects your headlights. Someone unfamiliar with the vehicle should be able to look at the wiring and understand what they’re seeing.
Integration That Looks Factory-Installed
Aftermarket additions shouldn’t appear aftermarket. EFI harnesses integrate cleanly with the main system rather than being zip-tied alongside. Accessory circuits use proper switches and protection rather than toggle switches bolted to random surfaces. The overall appearance reflects thoughtful design rather than incremental additions. This isn’t about visual impact—it’s about work that reflects care and planning.
Future-Proofed for Planned Early Bronco Wiring Upgrades
Discuss anticipated accessories early. Spare capacity, accessible connection points, and documentation can make future changes easier when they are appropriate for the system.
Wiring isn’t the most visible part of an Early Bronco build, but it’s foundational. It’s the difference between a truck that starts consistently and drives reliably, and one that requires constant attention.
Early Bronco wiring decisions determine the ownership experience you’ll have. A thoughtfully planned and documented electrical system supports serviceability throughout ownership.
ASC 4×4 works on complete builds and substantial partial restorations in Southern California, with remote coordination available for clients nationwide. Discuss how the electrical system fits into your project.
asc4x4.com | (310) 396-6341
Q: Can I drive my Early Bronco with the original wiring? A: Original wiring often functions if unmolested, but becomes less reliable as insulation ages and modern accessories are added.
Q: How long does a complete rewire take? A: Timing depends on the vehicle, harness, accessories, and the scope of the restoration. Ask your builder for the schedule for your project.
Q: Will a new wiring harness increase my Bronco’s value? A: Documentation can help a future buyer understand the work performed, but resale value depends on the vehicle and market.
Q: Do I need to remove the body for a rewire? A: Not necessarily, but frame-off restorations offer the best access. In-vehicle rewires are possible with patience.
Q: Can I keep my original switchgear with a new harness? A: Most quality kits work with original switches, though some upgrades may require modern replacements.
Q: What’s the difference between American Autowire and universal kits? A: Application-specific kits like American Autowire include factory-style routing and Early Bronco-specific circuits; universal kits require significant adaptation.
Q: Should I rewire before or after engine swap? A: Plan the engine and electrical systems together so the harness, controls, and circuits match the selected powertrain and the builder’s sequence.
